Modular Printers

Printers

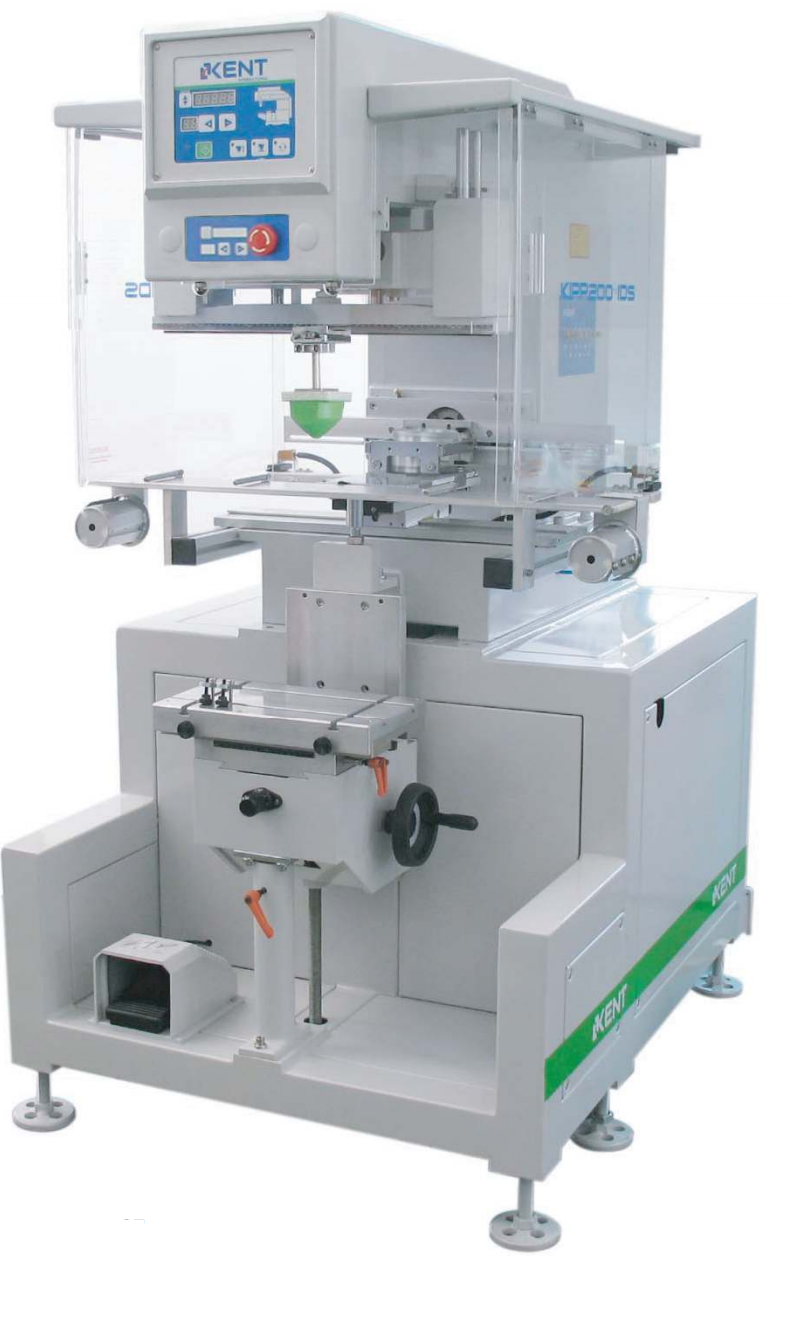

Kipp 200

Specifications

  • Ink Cup Sizes: 60, 70, 90, 125, 130 and 150mm

  • Printing Plate Sizes: 100x250mm, 150x300mm, 150x350mm

  • Max. Image Size: 50, 60, 80, 115, 120, and 150mm

  • Max. Cycle Speed: ~1,000 cycles/hr

  • Pad Compression: 3,016 N

  • Air Consumption: ~400 liters/min

  • Power: 110V/220V (switching power supply

  • Accuracy: +/- .05mm

  • Machine Size: 1,200x1,000x1,750mm (LxHxW)

  • Machine weight: 430kg. / 948 lbs

  • Download Literature

1/2

A popular Variant of our Kipp 200

PP-150

Key Specifications

  • Ink Cup Sizes: 60, 70, 90, 125 and 130mm

  • Printing Plate Sizes: 100 x 250mm, 150 x 300mm

  • Max. Image Size: 50, 60, 115 and 120mm

  • Max. Cycle Speed: ~1,200 cycles/hour

  • Pad Compression: 1,870 N

  • Air Consumption: ~228 liters/min

  • Power: 110V/220V (depending on power supply)

  • Accuracy: +/- 0.05mm

  • Machine Size: 974x740x1,606mm (LxWxH)

  • Machine weight: 170 kg. / 375 lbs

  • Download Literature

1/2

PP-150 IDS

A Popular Variant that includes

Servo driven pad carriage

Sideways sliding ink cup for long image printing

PLC touch screen for quick & easy adjustments

PP21N/S2

1/3

Specifications

  • Ink Cup Sizes: 90mm Standard (60 & 70mm available) (x2)

  • Printing Plate Size: 100 x 250mm (x2)

  • Max. Image Size: 80mm with 90mm ink cup (x2)

  • Max. Cycle Speed: 850 cycles/hour

  • Pad Compression: 750N

  • Air Consumption: 71 liters/minute

  • Power: 110V/220V

  • Accuracy: +/- .05mm

  • Machine Size: 740x700x1,414mm (LxWxH)

  • Machine Weight: 54kg. / 120lbs

  • Download Literature

View our other pad printers
